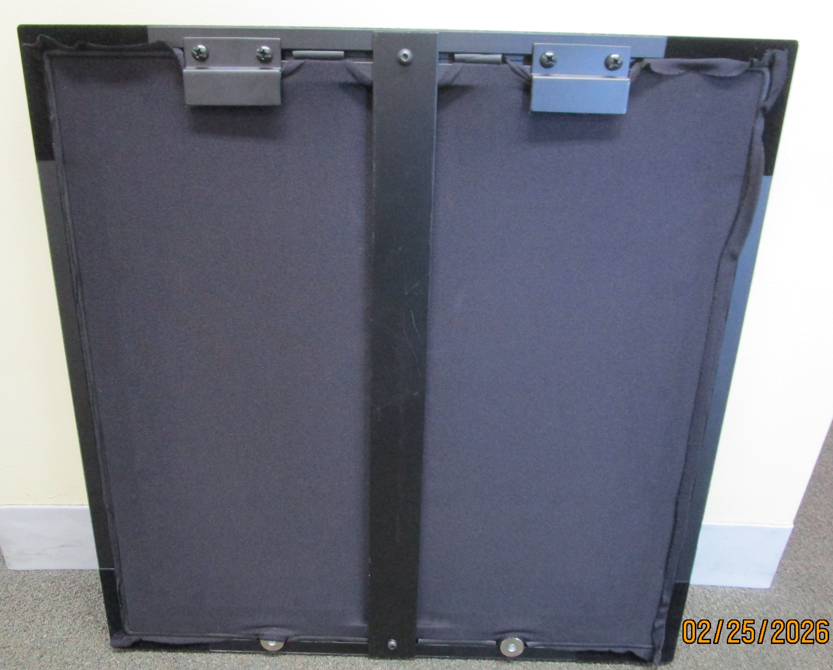

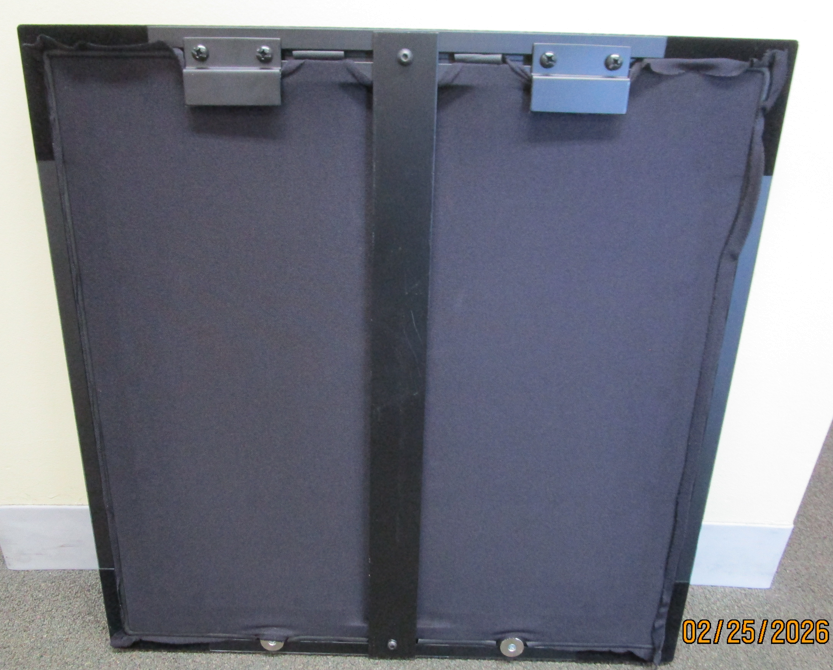

Note: This application is for the WallScreen Deluxe (shown), WS 2.5, Cima FF and the Balón Series only.
Step 1:Lay the screen face down on clean flat surface.
Place the screen on a clean flat surface covered with plastic sheeting.

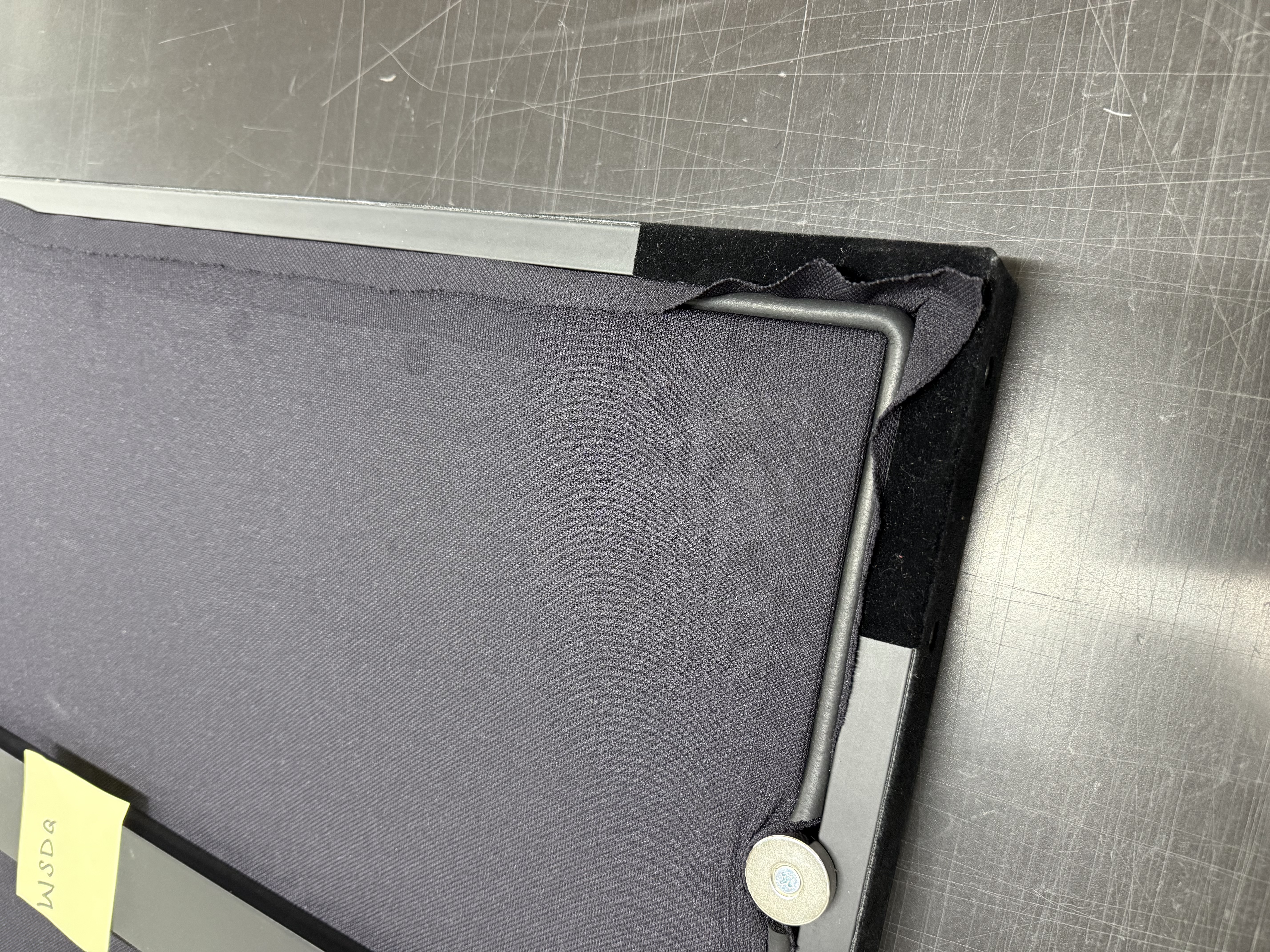

Step 2: Position the scrim on the frame.
Lay the scrim material to cover the entire frame. Leaving an extra 2 inches of screening material overlapping the frame on all four sides. Pull the scrim taut.

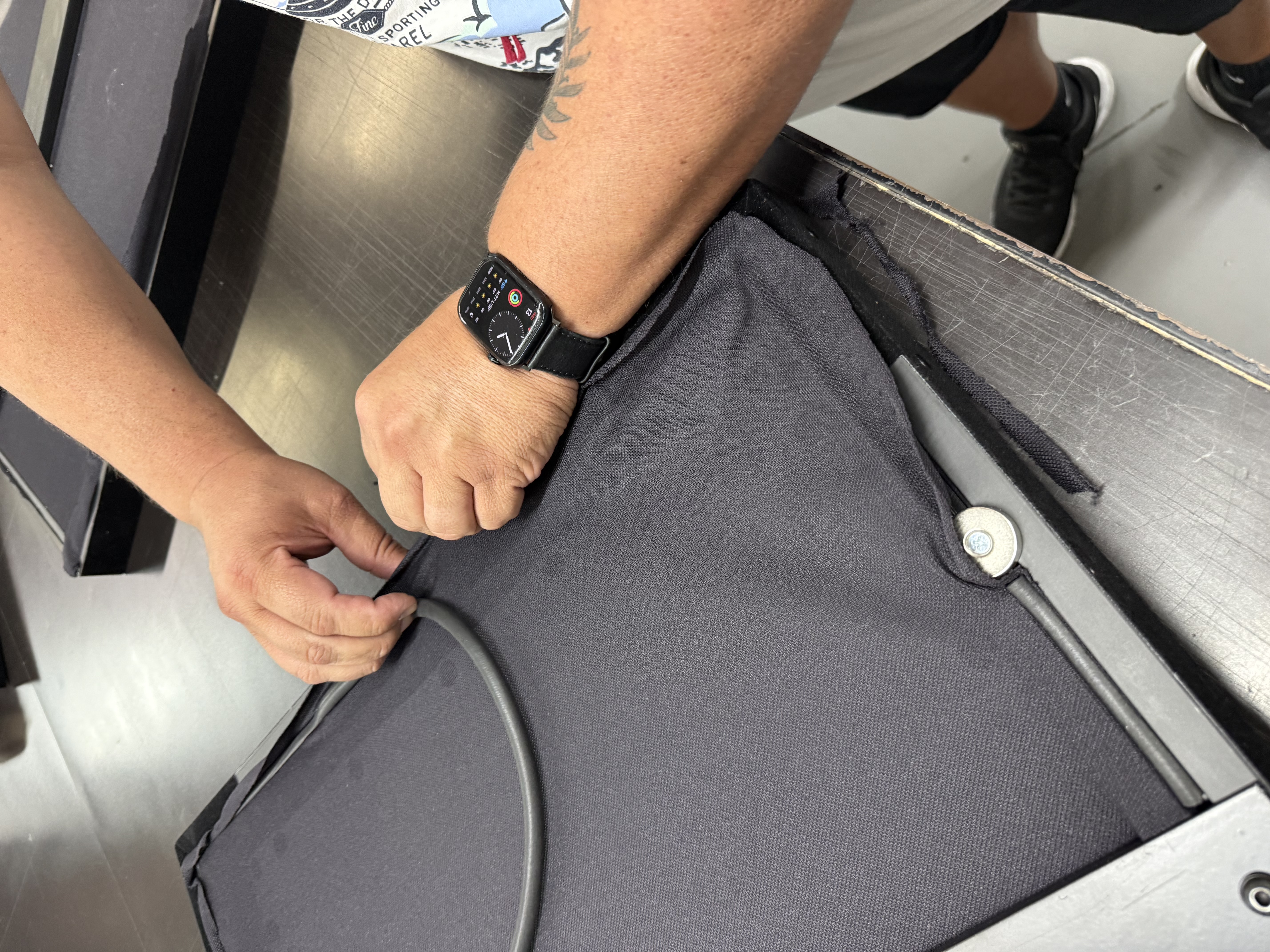

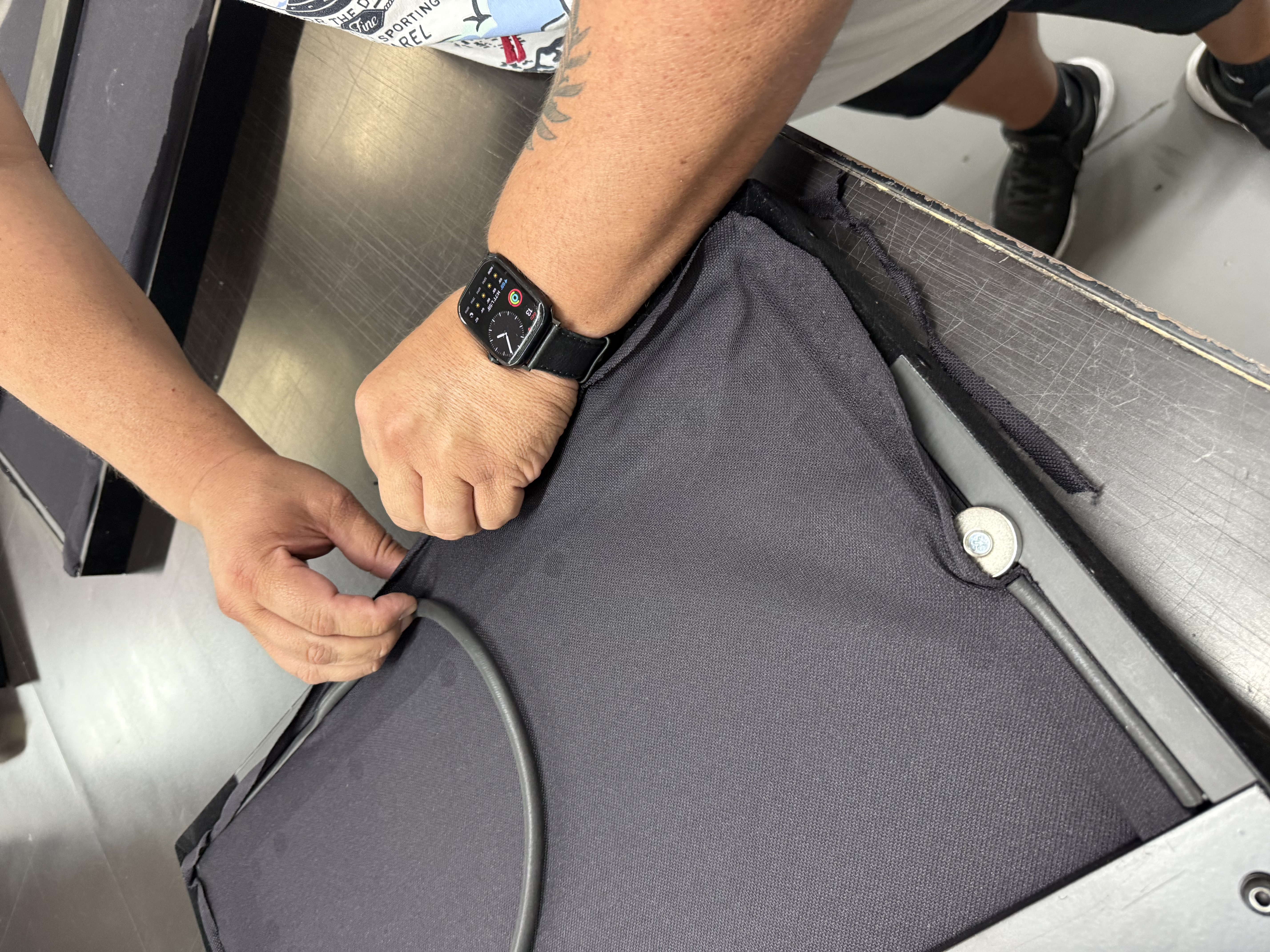

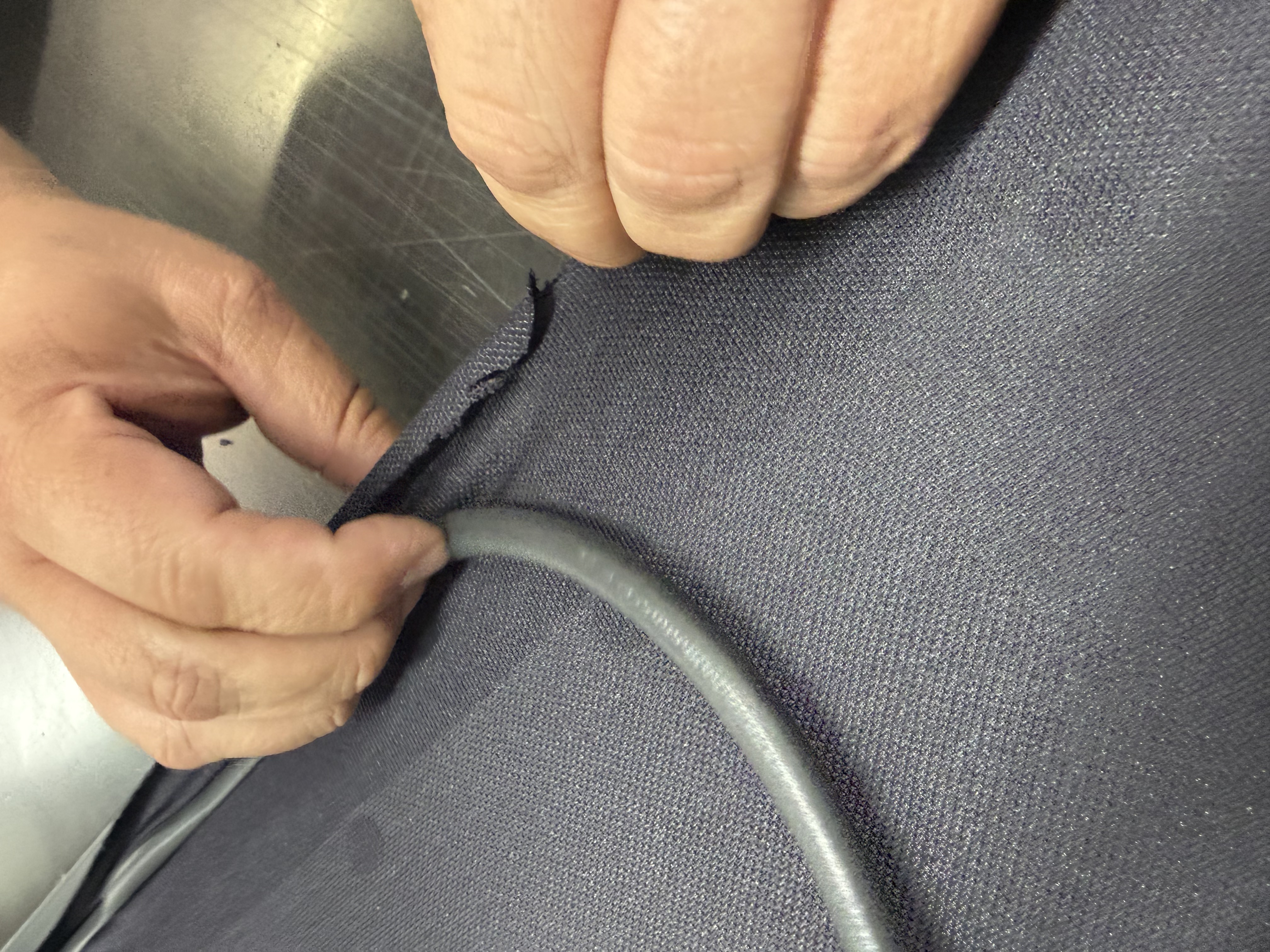

Step 3: Install the black rubber spline into the groove on back of screen frame.
Starting at one side and working your way around the perimeter of the frame, using your fingers to push the spline into the frame channel. Be sure to keep the material taut as you work your way around.

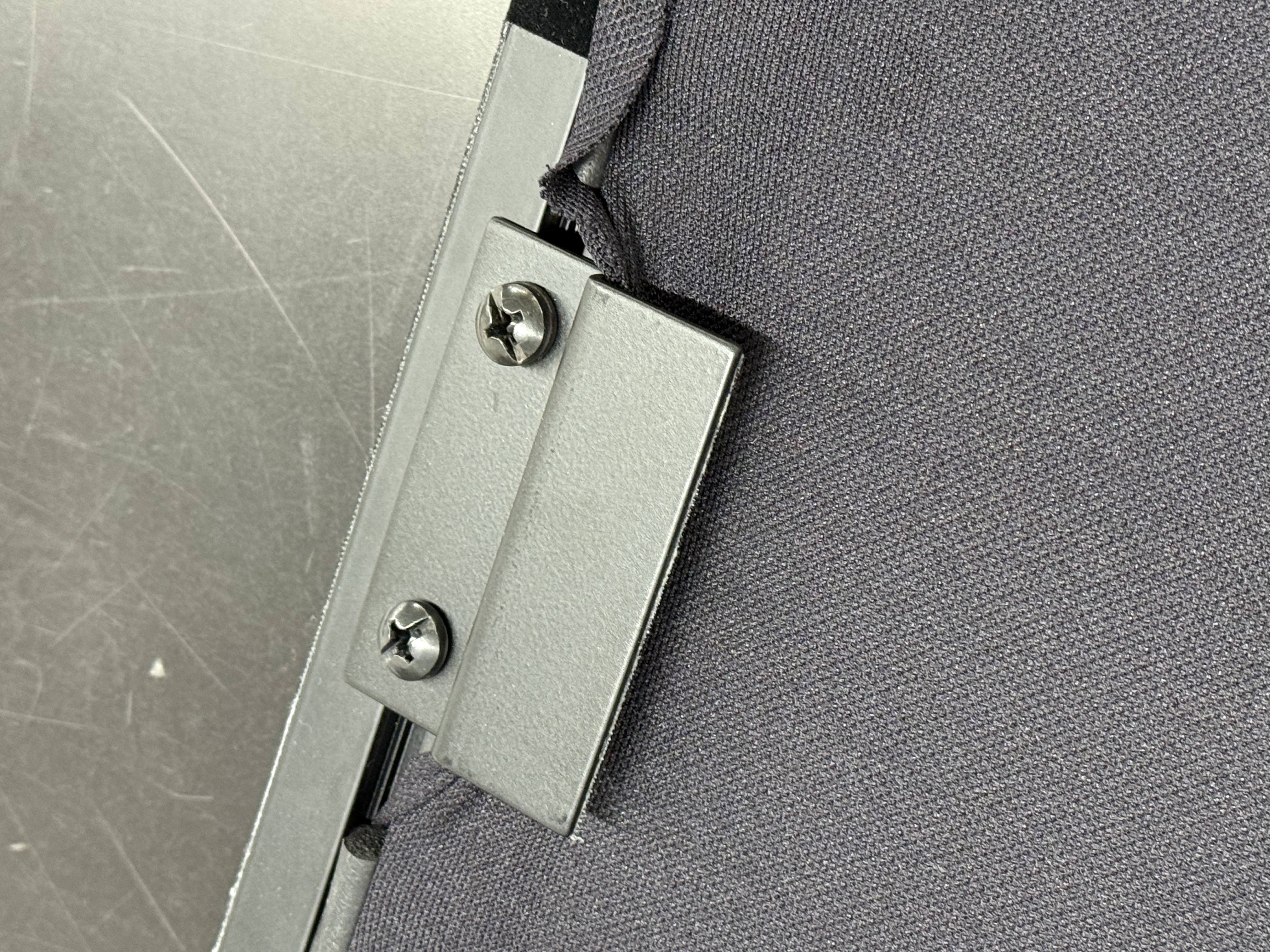

When you reach mounting hardware cut the rubber spline and start again on the other side of the mounting hardware.

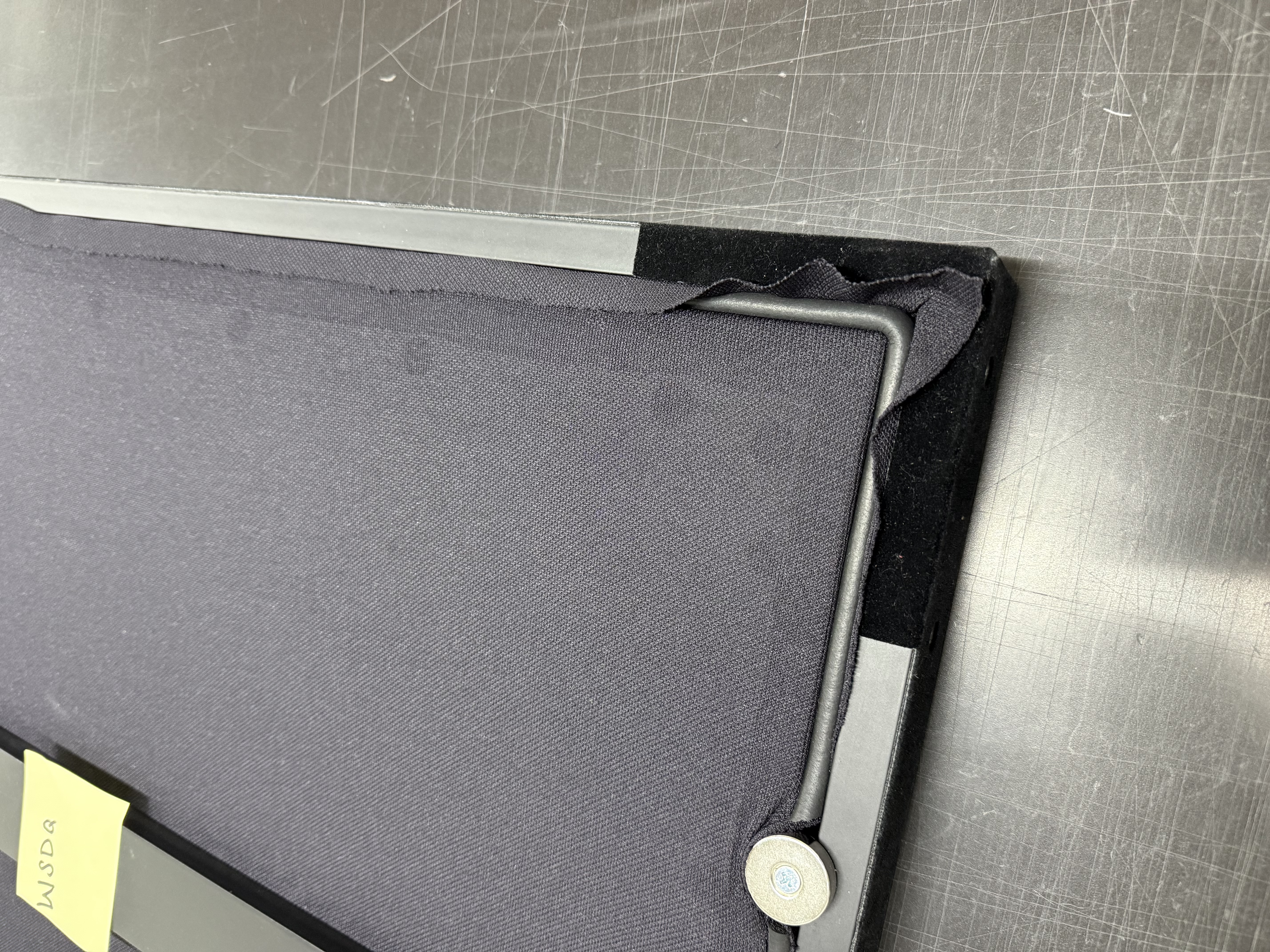

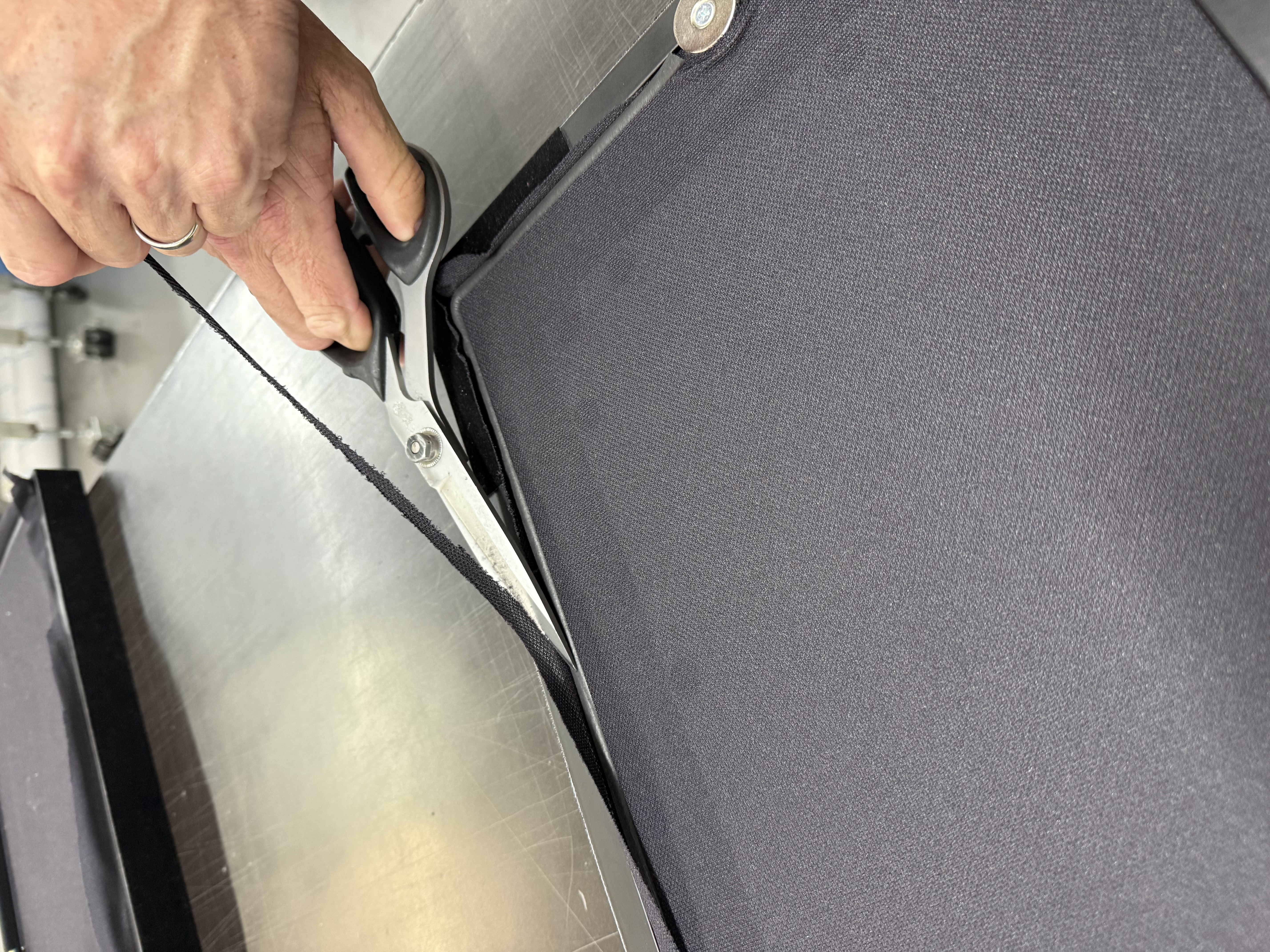

Step 4: Remove excess scrim material.
Once you have installed the spline, trim the excess screening material with a pair of scissors. Cut the scrim on the outside of the new spline.
Step 5: Install screen on to wall.
